Wonyo Sewing Embroidery Machine WY1201CS

Wonyo Sewing Embroidery Machine WY1201CS

WONYO embroidery machine factory specialized in cap embroidery machine, single head embroidery machine 12 & 15 needles is the best seller among all the models. It suits for household business or semi-industrial area. Welcome to contact us for price anytime!

InquiryChat Now

  • Product Details

Wonyo Sewing Embroidery Machine WY1201CS
Embroidery machine brand WONYO factory locating in Shenzhen, China!

Professional customized computerized cap embroidery machine!
Look for agents/partner/distributor all over the world!




Main parameters
Functioncap embroidery, t shirt embroidery, flat embroidery...
Model#WY1201CS, WY1501CS
Speed1200 stitches per minute
Main MotorServo Motor
XY MotorStepper motor
Digitizing softwareDahao
Embroidery Design formatDST, DSB
Control BoardTopwisdom, 7" LCD touch screen, Optional 8-10"
LanguageEnglish, French, Spanish, Portuguese, Arabic... total 12 languages
VoltageAC110-220V, adaptable for any volatge
Power50-60HZ



I. Main features
A. Suitable for flat embroidery, cap embroidery and finished garments embroidery, like T-shirt
B. Automatic thread trimmer
C. Maximum speed 1200 SPM
D. 270 degree Wide cap frame unit
E. Color LCD display showing real time stitching
F. USB input port
G. Automatic color change
H. Thread break detection
I. Pre-sew design trace capable
J. Memory size 2, 000, 000 stitches
K. Emergency stop
L. Electricity: 110V/60Hz or 220V/50Hz available
M. Built-in bobbin winder
N. Keeping current data or work when emergency stop or power off
O. Mending function. (back and skip stitches under controller)
P. Switch of Cap/ flat embroidery mode eliminating hitting the frame.
Q. USB port with fast data transmission and good compatibility
X. Mainboard intergated into control panel protecting from dust or external force.
Y. Lay-out of keys on panel is user-friendly.
Z. Built-in Network


II. Compact control panal
A. Color LCD display showing real time stitching
B. Manual, Semi-auto, Auto Color Change
C. Function keys including Menu, Speed up and slow
D. Multi languages available like English, French, Spanish etc.
E. Frame-moving keys, Manual Trimming
F. DOT ket to return to 100 degree
G. Start, Stop, and emergency Stop
H. Embroidery Status (Page Up/Page Down), USB Input,
I. Parameter Settings, Clear, ESC, Enter, etc.
J. Numeric keys for selection of needles

Control System
Automatic trimmingyes
Automatic cuttingyes
Automatic color changeyes
Thread broken detectingyes
Memory size20,000,000 stitches/200 embroidery design patterns
Font/letter softwareavailable
Error codeyes
Real-time stitchingyes
Different languages settingyes
USB port, network transferring designyes
Laser position with red lightyes
Led lightyes


Accessories included

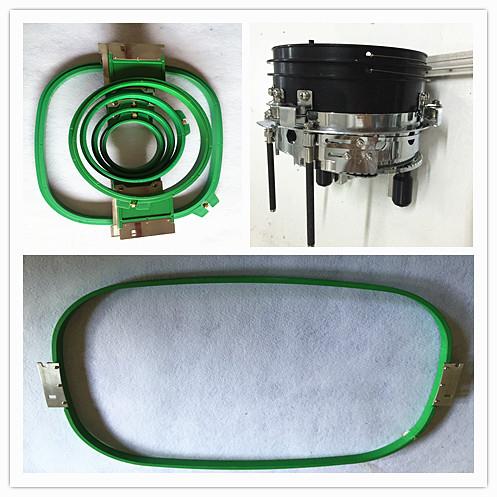

Frames:( free sent)
2 sets of back hoops for 30cm x 30cm (11.80" x 11.80") for each head
2 sets of front hoops of 19cm (7.50") for each head
2 sets of front hoops of 15cm (5.90") for each head
2 sets of front hoops of 12cm (4.70") for each head
2 sets of front hoops of 9cm (3.50") for each head
Cap attachment(2 cap ring, 1 cap drive, 1 cap frame)for each head
Flat frame1 Sash Frame: 56cm x 38cm (32" x 19") for 2 heads
Foot wheelsincluded for easy movement of the machine
Operation manualEnglish and French version, other languages can be added
Bobbin WinderIncluded
Tool boxyes, with needles, reciprocators, sensor, bobbin...


IV. Cap attachment, tool box, USB driver
Embroidery Design Samples


Photo picture embroidery:

Optional Devices:
Sequin embroidery
Taping embroidery
Boring embroidery
Cording/Coiling embroidery
Bead embroidery


All spare parts will come together with Single Head Commercial Computerized Embroidery Machine with Touch Screen
Computer (WY1201CS) in one case.

Single Head Commercial Computerized Embroidery Machine with Touch Screen Computer (WY1201CS) is an efficient and
stable machine with high speed 1200spm. It will be your good and right choice.
With automatic thread trimmer
Automatic color change
Speed is 1200 stitches per minute .
Working area is 360*510mm 360*1200mm .
Support USB
Support Different laguage :English / Spanish /Dutch / Russia .
Machine will be in wooden package , very safe for sea shipping .
Just feel free to contact !

Packing details
Packing materialFumigation-free wooden box
Packing size840*840*930mm
Gross-weight170kg
Other requestAs customer required


Related latest new model for 1 head embroidery machine:

Q200: 1 head 6 needles, embroidery size: 200*300mm, 1000SPM

Q201: 1 head 9 needles, embroidery size: 200*300mm, 1000SPM

Other models as choice to meet your demands for embroidery business

Model#Head#Needle#Embroidery AreaSpeedPackage Size
WY1201C, WY1501C112/15360*510mm1200SPM840*840*930mm
WY1201CL, WY1501CL112/15360*510mm1200SPM1580*1040*1100mm
WY11201CL, WY1501CL(customized)112/15500*1200mm1200SPM1500*1100*1200
WY902C, WY1202C29/12400*450mm850SPM1710*1060*1480mm
WY904C, WY1204C49/12400*450mm850SPM2700*1140*1660mm
WY906C, WY1206C69/12400*450mm850SPM3760*1140*1690mm
WY908C, WY1208C89/12400*450mm850SPM4510*1130*1670mm
WY910C109400*450mm850SPM4910*1130*1690mm
WY912C129400*450mm850SPM5838*1490*1600mm
