2 Head Computerized 12 Needle Embroidery MachineDesign Q402

2 Head Computerized 12 Needle Embroidery MachineDesign Q402

dual-head machine, 400 × 500 mm area, 1000 SPM, Topwisdom 10-inch screen with direct photo embroidery. Flat, cap (270° frame) and garment embroidery. Japan Koban hook, Panasonic servo, Groz-Beckert needles. CE/SGS, 24-month warranty. OEM/ODM, made in Shenzhen....

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction



modular-1

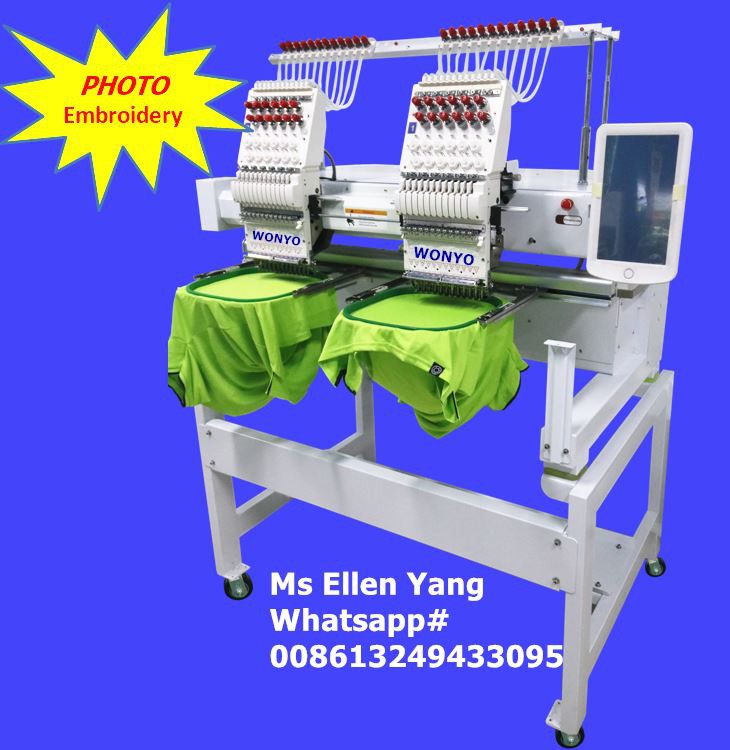

WONYO Q402 - 2 Head Computerized 12 Needle Embroidery Machine

Two heads × 12 needles, 400 × 500 mm embroidery area, 1000 SPM, Topwisdom 10-inch touch screen with direct photo embroidery. Flat, cap and finished-garment embroidery on one machine - the upgraded Q-series with Japan Koban rotary hook, Italy belts, Panasonic servo motor and linear rail. Sister models: Q401 (9 needles) / Q403 (15 needles), same frame.

WONYO Embroidery Machine twin Head 9/12/15 Needles with Cap,Ready-to-Wear,and Flat



Machine Videos: https://www.facebook.com/yang.ellen1988

一:Product Specifications

Item Spec
Model Q402( Q401 / Q403)
Heads × Needles 2 heads × 12 needles
Embroidery area 400 × 500 mm per head(cap 260 × 60 mm;T-shirt 290 × 290 mm)
Max speed 1000 SPM
Main motor Panasonic servo motor;XY stepper;linear rail
Hook / Bobbin Japan Koban hook, Towa bobbins
Needles Groz-Beckert (Germany)
Control Topwisdom, 10" LCD touch screen, 16 languages, direct photo embroidery
Memory 20,000,000 stitches / 200 patterns;DST & DSB
Auto functions Trim, cut, color change, thread-break detection, pre-sew trace, power-off resume, laser position (red light)
Voltage AC110–220V self-adapting, 50/60Hz
Overall size 1710 × 1060 × 1480 mm
Certification CE, SGS
Warranty 24 months limited warranty with lifetime support

2 Head Computer Photo Embroidery Sewing and embroidery Machine

二:Product Features

1.Two heads, one command - a single control system drives both heads to stitch the same design in sync, delivering identical stitch-out on both pieces, operated by just one person.

2.270° wide cap frame - cap frame and garment frame switch without re-digitizing; the pattern rotates 180° automatically after the frame change.

3.Direct photo embroidery - the 10-inch screen supports converting BMP photos directly into embroidery, no digitizing required beforehand.

4.Built-in lettering - with built-in lettering software, English lettering can be arranged directly on the panel.

5.Panasonic servo motor + Japanese Koban rotary hook + Italian belt - the premium component setup behind stable full-speed running on both heads.

6.Laser positioning + thread-break detection - red laser light locates the starting point; the machine stops instantly on thread breakage, with mending function (back/skip stitches).

7.Hand rings on both sides + foot wheels - side carry handles and castor wheels make relocation and positioning easy.

8.Optional devices - sequin, double sequin, boring, cording, laser trace, 8-in-1 hoop set, and shoe device can be added later.



Good Quality, Industrial WonyoHead Embroidery Machine With 9 Needles 400*500

三:Application Areas

Embroidery Machine With Operating System Single Head Embroidery Machine

A.Cap customization - Batch embroidery on both front and back positions of baseball caps (dual-head parallel operation with the cap frame).

B.T-shirts & ready-made garments - Chest badges up to 290×290 mm; jacket back embroidery with a 30×30 cm back clamp frame.

C.Photo embroidery customization - Portraits and commemorative designs embroidered directly from photos (an exclusive selling point of the Q series).

D.Flat embroidery on fabrics - Chenille embroidery, appliqué patches, and metallic thread (gold cord) embroidery.





四:Considerate Service (After-Sales & Support)​

1.Warranty:​ 24-month warranty on the complete machine + lifetime maintenance; 36 months of free control system upgrades.

2.Free repairs during the warranty period for quality-related issues (excluding damage caused by human error or environmental factors, and consumable parts).

3.Free training for 1–2 engineers (travel expenses borne by the customer).

4.On-site service by overseas engineers available.

5.Payment terms:​ 30% T/T deposit + 70% balance before shipment; T/T, Credit Card, E-checking, and L/C accepted.

6.Delivery time:​ Approx. 13–15 days for production; shipment within 7–10 days after payment received.



FAQ Hot Questions

Q:What's the difference between Q401, Q402 and Q403?

A: Same 2-head frame, different needle count: 9, 12, 15. More needles = more colors running without rethreading.

Q: What's included free with the machine?​

A: 5 sizes of T-shirt hoops per head, full cap attachment for both heads, flat hoop with table and stand, tool kit, bobbin winder, 8G USB, English manual.

Q: Can it embroider from a photo directly?​

A: Yes, the 10-inch panel supports direct photo embroidery (BMP), plus DST/DSB formats.

Q: Warranty and after-sales?​

A: 24 months for the whole machine with lifetime support, 36-month free upgrade for the control system; overseas engineer service available.

Q: Payment and delivery?

A: 30% T/T deposit, 70% before shipment; production 13–15 days, shipping 7–10 days after payment. Credit card, e-checking and L/C accepted.

Q: Do I need the Elite model or economy model?

A: Think: How much would you pay for a machine? What we offer is what you need!

Q: Can I represent and sell ORDER machines in my market?

A: Welcome to join ORDER family and grow to be a strong distributor.

Model Head Needles Working Area Speed
Q401 2 9 500*400mm 1000SPM
Q402 2 12 500*400mm 1000SPM
Q403 2 15 500*400mm 1000SPM



WONYO 2 Head High Speed maquina bordadora commercial Cap embroidery machine Tajima design
Wonyo 2 Head Textile Embroidery Machine Computerized For Business

Look for agent all over the world!
Contact:
Nicki Wang 008618696118389

Brand: WONYO
OEM/ODM accepted.
TT/Credit Card/Echecking accepted
Digitizing software/Free training/3 years' warranty/Oversea service available
Price can be negotiated!
